Veebirakenduse projekt (ITI0302)

The internet protocol stack

• Internet layer (IPv4, IPv6)
  • Handles that message gets from point A to point B
  • IP header includes source address and destination address
• Transport layer (TCP, UDP)
  • TCP/UDP are within IPv4 or IPv6 packet
  • TCP and UDP add ports (port numbers: 0–65535)
    • 0–1023 — well known / privileged ports (need admin rights in UNIX systems)
    • 1024–49151 — regular ports, can use any of them
    • 49152–65535 — dynamic/ephemeral ports (OS assigns these for outgoing connections)
  • For example source port is a random port on your machine
  • Destination port: 80 (HTTP), 443 (HTTPS)
  • This lets multiple applications share one IP address

HTTP(S)

• Application layer (HTTP, HTTPS)
  • HTTP is wrapped in TCP message (TCP payload is HTTP message)
  • HTTP is the actual protocol used in web
  • HTTPS is encrypted (TLS/SSL) HTTP
  • HTTP communicates via request-response pattern
  • Client sends request → Server sends response
  • Stateless protocol (each request is independent)
  • Default ports: HTTP (80), HTTPS (443)

HTTP protocol structure

Sample request:

GET /api/books/123 HTTP/1.1        ← method + path + HTTP version
Host: localhost:8080               ← header (automatically added)
Accept: application/json           ← header (expected content type)
Authorization: Bearer token123     ← header (auth information)
                                   ← empty line (required)
                                   ← request body (currently missing)

Sample response:

HTTP/1.1 200 OK
Content-Type: application/json
Content-Length: 54
                                   ← empty line (required)
{"id": 123, "title": "Clean Code", "author": "Martin"}   ← response body

Initialization of backend project

• https://start.spring.io/

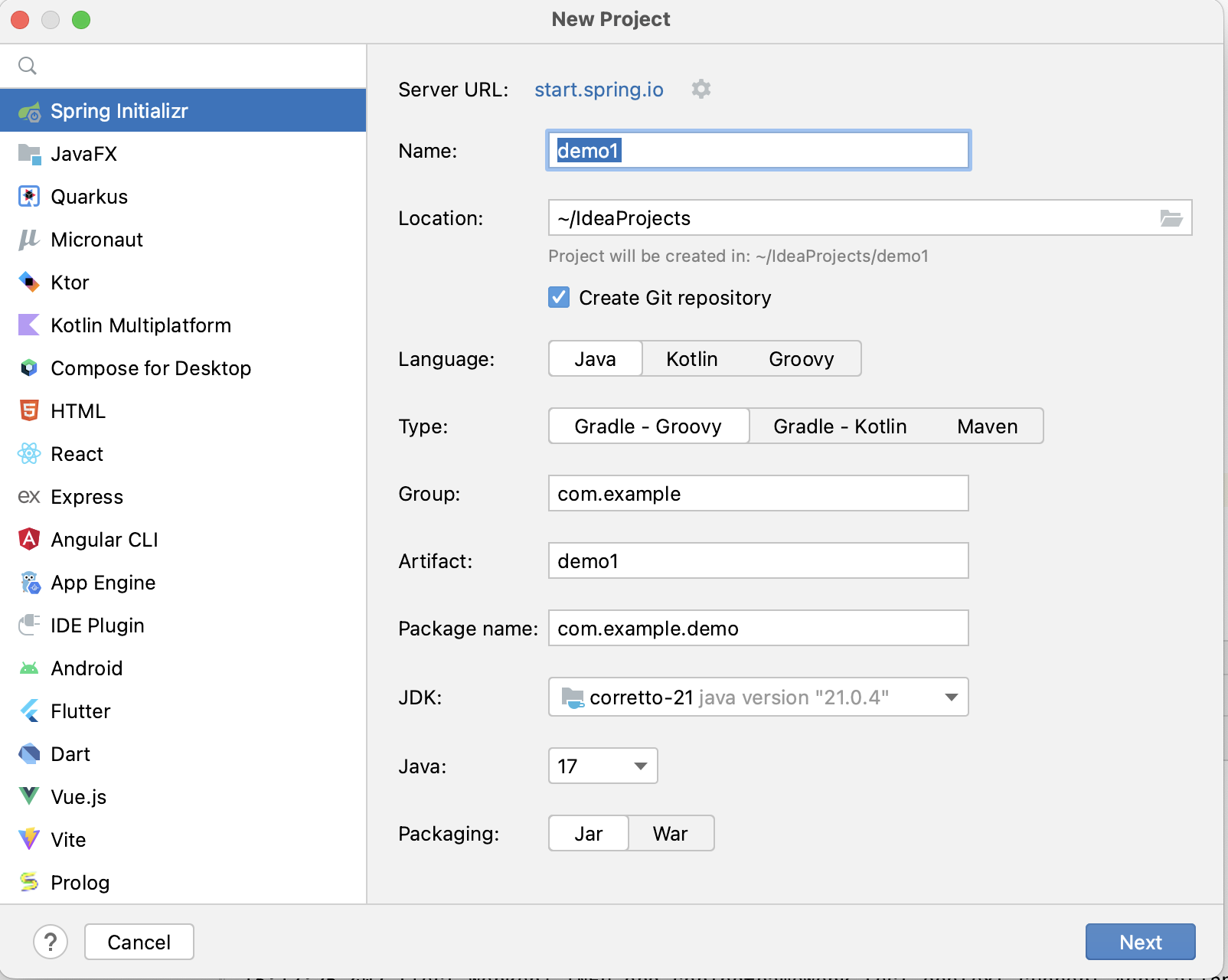

• IntelliJ: File → New → Project
• Choose Spring Initializr

Maven / Gradle

• Build automation tool
• Dependency management
• Library repository (https://mvnrepository.com/)
• Maven: pom.xml
• Gradle: build.gradle

Other options

• Language (we use Java)
• Spring Boot (use default = latest stable version)
• Java versions
  • LTS (long term support) versions are: 8, 11, 17, 21, 25
  • Usually, latest LTS is a good choice (currently 25)
  • You may use the latest version

Project metadata

• Name — project name
• Description — description
• Package name — base package of your application
• From https://maven.apache.org/guides/mini/guide-naming-conventions.html:
  • groupId uniquely identifies your project across all projects. A group ID should follow Java's package name rules. This means it starts with a reversed domain name you control.
  • artifactId is the name of the jar without version.

JAR / WAR

• JAR — Java Archive
• WAR — Web Application Resource
• Both are actually zip files
• WAR file contains a web application that can be deployed on an installed server
• JAR file can be run without a server (java -jar test.jar)

Dependencies

• In the dependencies tab we can add other libraries that are automatically downloaded
• For starters we only need Spring Web (will add more later)
• Maven caches downloaded dependencies in .m2 folder
• Gradle caches downloaded dependencies in .gradle folder

Run project

• Run generated project main method
• You should see something like that:

INFO --- [main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port 8080 (http)
INFO --- [main] com.example.demo.DemoApplication        : Started DemoApplication in 1.2 seconds

Add Hello World controller

@RestController
public class HelloController {

    @GetMapping("/")
    public String helloWorld() {
        return "Hello World";
    }
}

• Rerun application (you need to rerun after each change)
• Go to localhost:8080

REST — Representational State Transfer

• Architectural style with formal constraints (not protocol, not standard)
• Academic definition says:
  • Client/Server
  • Stateless
  • Cache
  • Uniform Interface
  • Layered System
  • Code on Demand
• In practice for web APIs, we focus on:
  • Stateless (each request is independent)
  • Uniform Interface (consistent URL patterns)
  • Client/Server (obvious — that's what we're building)

REST — resource

• A resource is any piece of data you can name:
  • User, Book, Order, Comment, Product
  • Resources are NOUNS, not actions
  • Each resource has a unique identifier (URL)
• Examples:
  • User with ID 123 → /users/123
  • All users → /users
  • Order 456 → /orders/456

REST URL rules

• ALWAYS use plural nouns (even for single items)
  • GET /users/123 (one user)
  • GET /users (all users)
  • GET /user/123 (wrong!)
• Collections vs single resource:
  • /users → collection (array)
  • /users/123 → single resource (object)
• No verbs in URLs:
  • /getUsers, /createUser, /deleteUser
  • GET /users, POST /users, DELETE /users/123

REST hierarchies

• Nested resources (parent-child relationships)
  • /users/123/posts → posts belonging to user 123
  • /posts/456/comments → comments on post 456
  • Keep it shallow (2–3 levels max):
    • /users/123/posts
    • /users/123/posts/456/comments/789/likes

HTTP methods = actions on resource

HTTP status codes

• Response code is returned to the client by the server to signify the final status of the request
• The first digit signifies the main category of response code
  • For example when POST request creates a resource then you should return 201
  • If you return 200, it's not wrong but you are giving less information about the state
  • On the following slide there is a list of codes we should be aware of and use in this course

HTTP status codes

URL

http://www.test.com:8080/employees/5?tag=boring&a=awesome
└─┬─┘   └─────┬─────┘└┬─┘└─────┬───┘└────────┬──────────┘
protocol     host    port    path          query

• Protocol — http (plain text) / https (encrypted)
• Host — comes from DNS and server configuration
• Port — if no port specified then uses protocol's default (http = 80, https = 443)
• Path — path is divided by slashes and controlled in Java
• Query — starts from ?, query parameters are separated by &

Defining controllers

• All classes must be inside your project base package
• All classes that contain code that can be called from web have to have @RestController annotation
• All methods have to have a mapping annotation (e.g. @GetMapping, @PostMapping, …)
• Within the mapping annotation you must define the request path

Path variable

• You can read path variables by encapsulating them with braces in the mapping annotation

@GetMapping("/employees/{id}")
public Long test(@PathVariable("id") Long id) {

REST query parameter best practices

• Query parameters are for filtering/searching collections
• Good uses of query params:
  • /posts?status=draft&author=john
  • /users?role=admin&active=true
  • /products?minPrice=10&maxPrice=100
  • /posts?page=2&limit=20
• Don't use query params for resource identification:
  • /users?id=5 (wrong — use /users/5)
• Path vs query:
  • Path identifies WHAT: /users/123/posts
  • Query filters HOW: /posts?status=published&sort=date

Request param

• You can use @RequestParam to extract query parameters
• /employees?employeeId=5&testId=4

@GetMapping("/employees")
public Result test(@RequestParam("testId") Long id) { …. }

• NB: request params are not part of the path and not defined within the mapping annotation

JSON sample

{
    "firstName": "Siim",
    "lastName": "Rebane",
    "position": "Software Developer",
    "vacationDays": [
        { "from": "2026-07-01", "to": "2026-07-14" },
        { "from": "2026-12-23", "to": "2026-12-31" }
    ]
}

JSON

• Objects are enclosed in braces {}
• Use colon : to separate key-value pairs
• Add comma between each key-value pair
• Arrays are enclosed in brackets []
• Add comma between array elements
• 7 value types: string, number, object, array, true, false, null
• Validate JSON: https://jsonlint.com/
• If you return an object from a controller it will be converted to JSON

DTOs

• DTO — data transfer object: carries data between client and server, no logic
• Recommended: use a record — one line, and you get constructor, equals, hashCode, toString for free:

public record BookDto(Long id, String name, Integer pageCount) {}

• Works automatically with @RequestBody and as a return value
• NB: accessors are book.name(), not book.getName()

DTOs — mutability

• Mutable = can be changed after creation; immutable = values are fixed once created
• A record is immutable — perfect for DTOs: a request that arrived should not be modified afterwards
• A classic class with getters and setters is the mutable alternative — also fine for DTOs, and you will see it in a lot of existing code
• When you NEED mutability, you need a class — e.g. JPA entities (week 4) cannot be records

DTO — the classic class

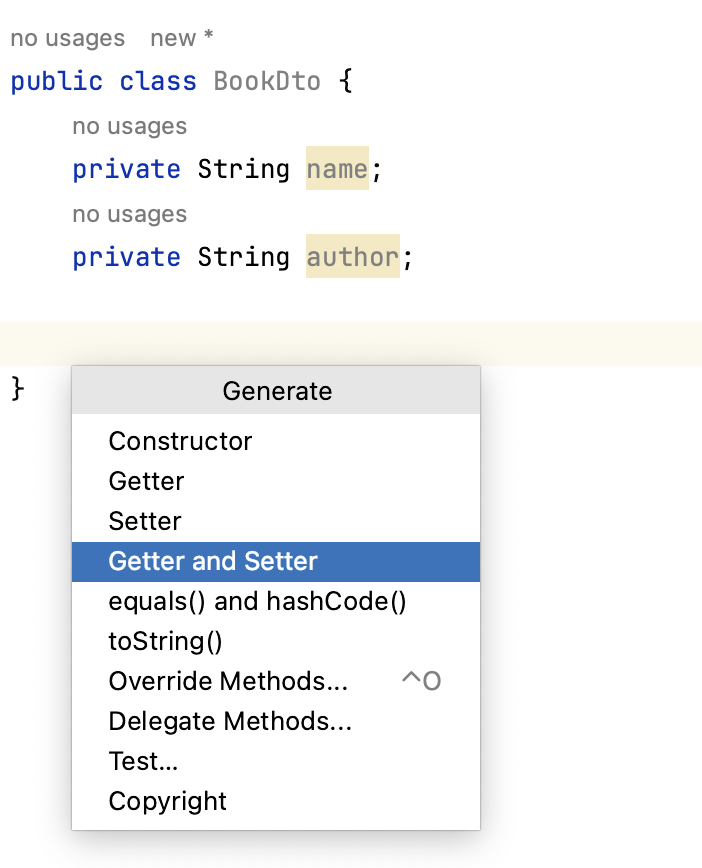

• Getter and setter methods can be auto-generated by IntelliJ:

@RequestBody

• The same way we can output data, the server can read data from the request body
• Annotate the variable where you want to receive the sent body
• For input use DTOs

@PostMapping("test")
public Result test(@RequestBody Request request) {
}

Status codes

• In case of success, if we want to respond with some other status code we can use @ResponseStatus
• In case of failure you can throw ResponseStatusException

@DeleteMapping("/{id}")
@ResponseStatus(HttpStatus.NO_CONTENT)
public void deleteBook(@PathVariable long id) { … }

throw new ResponseStatusException(HttpStatus.NOT_FOUND, "Book not found");

Status codes (more complex)

• You can also take full control using ResponseEntity<T>
• Define the method to return ResponseEntity<T> — then you choose the status per response:

@PutMapping("/{id}")
public ResponseEntity<Book> updateBook(@PathVariable long id, @RequestBody Book book) {
    if (bookExists(id)) {
        return ResponseEntity.ok(book);
    } else {
        return ResponseEntity.notFound().build();
    }
}

Testing your API

• Typing a URL in the browser only sends GET — for POST/PUT/DELETE you need a tool
• IntelliJ HTTP client — create a file ending in .http, press the green arrow:

POST http://localhost:8080/employees
Content-Type: application/json

{ "firstName": "Siim", "lastName": "Rebane" }

• curl works everywhere:

curl -X POST localhost:8080/employees \
  -H "Content-Type: application/json" -d '{ "firstName": "Siim" }'

• Postman is a popular GUI alternative
• Later we add OpenAPI/Swagger, which generates a test UI from your code
